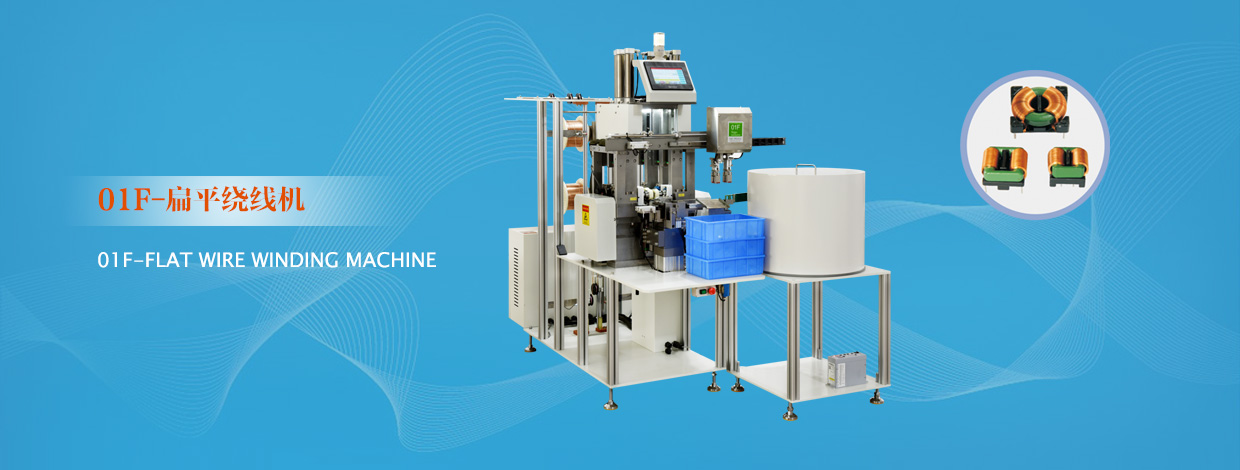

With many years of non-standard automation and flat wire winding industry experience, NAGO has independently developed and manufactured flat wire winding equipment based on customer demands. After long-term technical accumulation and difficulty research, flat wire winding equipment technology has been improved tremendously day-to-day. We have created sets of high-efficiency, cost-effective flat wire winding machine. Over the years, flat wire winding equipment has achieved fruitful results with two invention patent certifications. (ZL 2016 1 0269228.X) (ZL 2015 1 0874848.1)

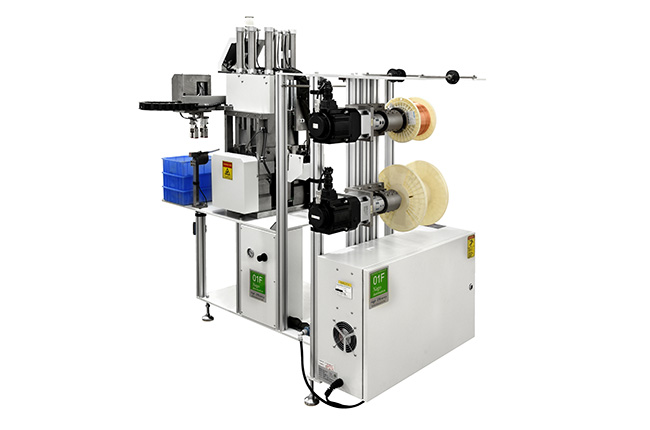

Specifications:
1-Quick switch for winding mold and wire guidence .

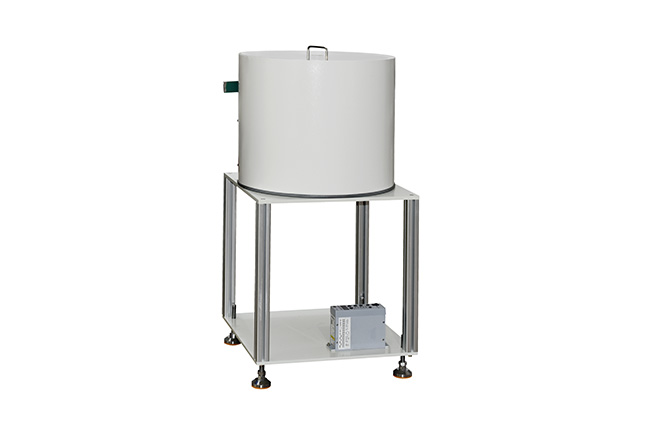

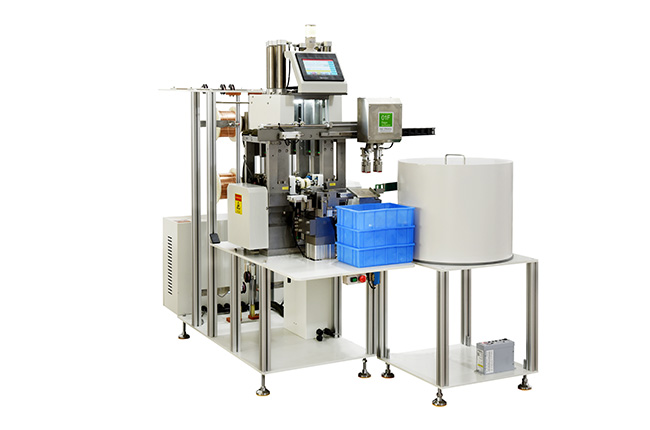

2-Optional for vibrating plate or without vibrating plate to load magnetic core, equipped with magnetic core oversize detection function
3-For small order customers, manual winding of magnetic cores can be carried out on a single or symmetric combination machine. After winding, the robot arm can take work-piece to achieve flexible selection of production capacity.
4-Low noise during operation

1- Wire thickness range between 0.30-1.0mm and width range between 0.5-4.0mm (the larger copper wire cross section requires the softer copper wire, the larger cross-sectional area copper wire may require two sets of wire feed wheels, the wear of the corresponding wire feed wheel 1- will increase as well. If the line thickness and line width user chooses are close to the maximum, technical communication with us is advised)
2- Magnetic core width is between 18-40mm
3- The copper wire with a thickness of 0.3mm or more can reserve for the wire head (The inner diameter of the coil determines the length of the wire head. and the longer the wire length, the slower the corresponding speed)
4- The length of the coil end is determined by the mold (line end 35-65mm)
5- Wire stuck alarm function can minimize the wear of the wire wheel
6- Magnetic core oversize alarm and removal function (When automatic mode)
7- Optional ±3mm wire head
8- Independent spool control
9- The winder is equipped with a vibrating plate to automatically load the magnetic core, and the capacity per hour are (reserved line head 600-650pcs, no reserved line head 650-750pcs.)
10- Single machine use voltage: AC220V
Peak power: 2000Watt
Air pressure: 0.4-0.6Mpa
11- Dimension:
Equipped with vibration plate --- - (L1700*W1100*H1650)
Without vibration plate------------- (L1700*W880*H1650)
