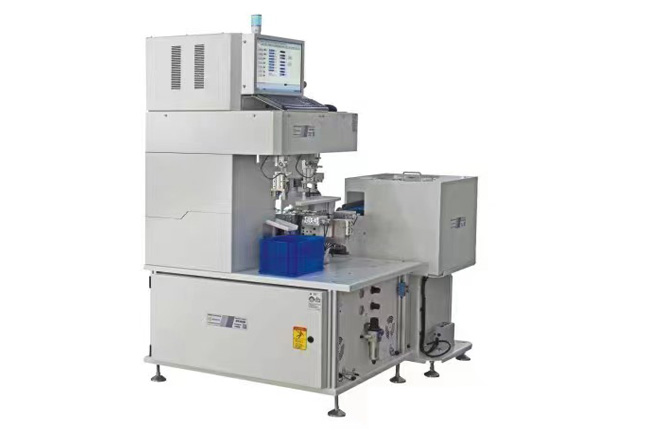

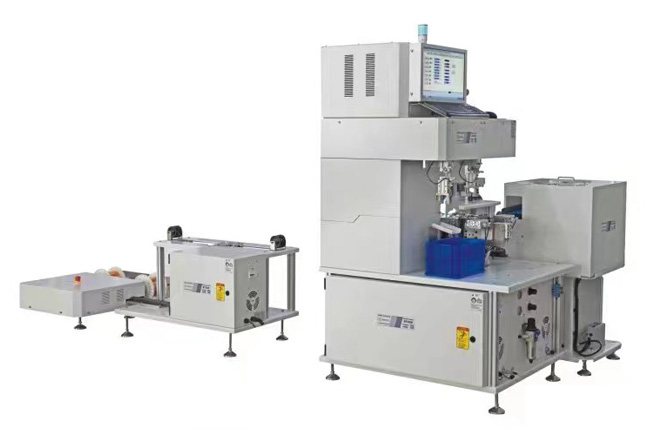

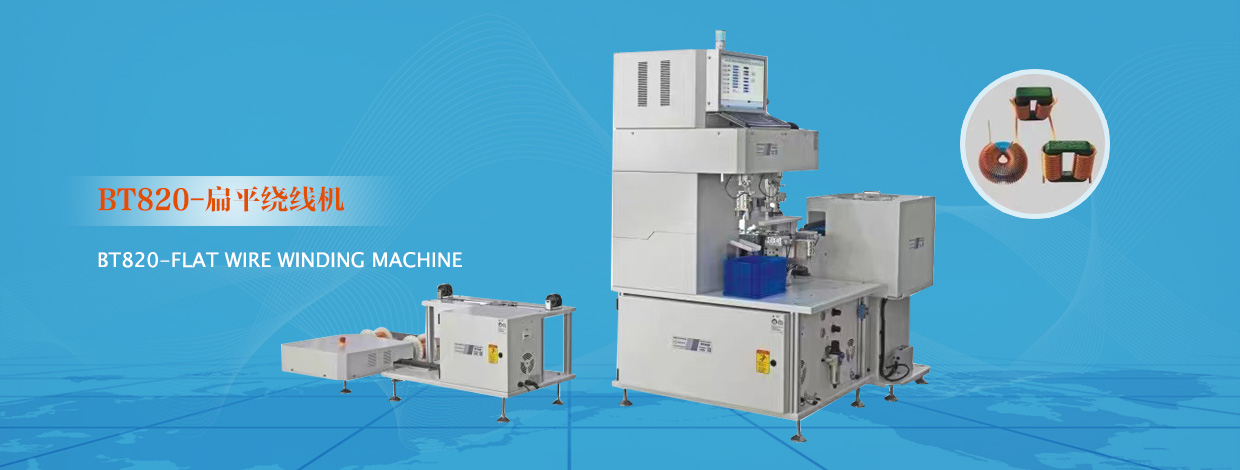

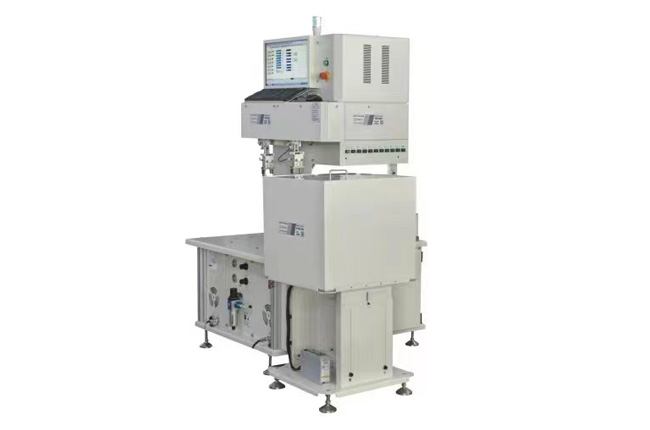

BT820 flat wire model is a model for large magnetic core (SQ1918-SQ4040), copper wire can do 10 square millimeter, this model can be used in one machine (SQ core, ring core, ESQ core, etc.), intelligent control and communication. High performance and stable production capacity, low noise of equipment operation, simple and easy to learn, fast winding tooling change; High safety factor with wrapped type; Can be linked to the back - end automatic production line. The electrical part of this machine adopts the whole-day control system and associated electrical accessories. Pneumatic part of the whole platform system pneumatic actuator and control element.

1-The wire thickness is 0.3-2.0mm and the wire width is 1.5-5mm (the larger the copper wire section, the softer the copper wire texture and the larger the cross-sectional area. The wire feeding power requires two sets of wire feeding wheels, which will increase the wear of the wire feeding wheels. When the coil diameter is designed by the user, if the wire thickness and width are close to the maximum value, we need to make technical communication with us);
2-Core width within 1918-4040;
3-Leave a wire head according to the magnetic core;
4-Coil wire length is determined by the winding tooling (wire length 18-55mm);
5-anti stay alarm function of stuck wire, so that the wear of wire feeding wheel is reduced to a minimum; 6-Magnetic core oversize alarm and removal function (When automatic mode)
7-Wire end stay position tolerance +/-3mm
8-Independent winding axis control
9-The two wires are independently controlled by two servomotors
10-Machine capacity: minimum700UPH with wire head, minimum 900UPH without wire head
11-Voltage: AC220V peak power: 2000W Pressure: 0.5-0.6mpa
12-Machine volume: single machine: including vibration plate (length 3000* width 1500* height 1950mm)
13-machine weight: 860KG
